Elio Type Vehicle Resurection --- AKA the BEX

[JEBar]

Per Mark BEX ....

Chipping away at the driving issues, steering is good now, brakes are great, feels very personal to drive with just the one seat up front, nice feeling

Weird vibes through the phone camera distorting the clarity, but be patient as it gets to external view later in the video.

I should really do a full safety check before I drive it next, a full check on every single nut and bolt, but excitement overcomes sensibilities!

PS: It's not slow!


SEE LINK ====> https://www.youtube.com/watch?v=x9-RVzfhWZE

[JEBar]

​Mark's BEX is a proven head turner .... the picture below was taken at the 3:00 mark of the video above .... the bike rider turned all the way around!! .... there is no doubt that is something those of us who purchase one will see often

​

[JEBar]

I asked Mark --- I was wondering the same thing .... I was a bit concerned that the shifter bracket would rub against the outside of my right leg

Mark's response --- I am a fidgety person, I hate being uncomfortable or things touching me, other than females, and I instantly notice these things, yet nothing. I hate things dangling from a car key touching your knee for example.

The worst is no floor to rest my foot on for clutch operation, that I noticed, and the throttle travel is too short, I noticed that in the donor car when I drove it, barely moves an inch.

[JEBar]

I just got word that Mark has been called away for a few days to take care of an urgent matter .... accordingly, he may or may not be posting about advances for a little while

[JEBar]

GREAT NEWS !!!

Per Mark BEX ....

I have deleted the Poll, it told me enough, and that enough is enough to start a program for the next development step.
I believe there is an immediate batch of 50 that would be delivered and importantly, I can cash that up myself.

I know this could end up easily in thousands of them based on what support Elio received, but I work to the minimum numbers and keep my self safe and sane. I eat elephants one bite at a time.

I might mention the moment my Passport is secured, I am flying to meet a manufacturer who is very keen, who already has a few of their vehicles in America (off road Buggys) which means they have already sorted transportion and other factors involved. They mentioned one of their vehicles is getting DOT, I will know more when I visit them about that.

I do not want to mention in public who the company is at this time, they are the real deal.

[Headhog]

Wow!!!! That is good news. He has been working tirelessly on this project and is on the verge of seeing this come to fruition.

Paul

[JEBar]

he is a remarkable young man who I've come to respect .... unless a totally unexpected major negative comes along, I believe he will bring it to production

[Mark BEX]

"Young man"? hehe! I'm a 1961 model

I must thank JEBar for all his support, it's people like JE that make days when nothing comes together a bit more worth the effort.

I am a bit surprised to find myself in a rifle forum with my car, but hey, whatever works!

As you may know, they took all our guns off us in Australia, but I was lucky enough as a kid to not only own a few air rifles (slug gun we call them), and be able to shoot it pretty freely around the place, but also go what we call "Spotlighting" often, which is hunting at night from a vehicle with a spotlight, usually with shotguns, but sometimes rifles. Good times, Govs can't steal your memories from you thankfully.

Anyway, car coming along steadily, I have a few plans how to implement it, and that's what is currently being assessed and sorted

Thanks again to JE!

Mark

[JEBar]

"Young man"? hehe! I'm a 1961 model

I'm a '46 model so young man most certainly applies .... we are happy to have Mark posting on the open forum, exciting times are ahead ....

[Cofisher]

Lord love you Mark. A great many of of us oldsters are rooting for you. Thanks for the inspiration and education. As a 2 wheeler, I'm not too excited about 3 wheel critters. But, old dogs can learn new tricks. Keep it up brother.

[Mark BEX]

Lord love you Mark. A great many of of us oldsters are rooting for you. Thanks for the inspiration and education. As a 2 wheeler, I'm not too excited about 3 wheel critters. But, old dogs can learn new tricks. Keep it up brother.

Yes, the support has been inspiring, thanks much

[JEBar]

Per Mark BEX ....

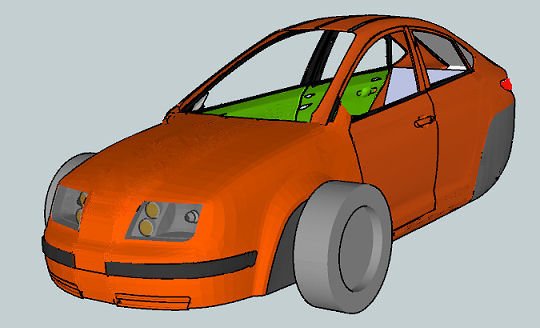

Over the next week or 2, I am going to try a narrowed VW Bora/Jetta nose for size.

This doesn't mean that's what I am using, it's just that I have a Bora going to waste in the factory, so I can try it out, and get practice in for narrowing a nose, rather than buying new panels and doing it wrong.

The Bora is actually one of my favorite car noses, and the nose panels are highly sort after by VW Mk4 Golf owners as they bolt straight on. They then call them "Bolfs" by the way, Google it if you don't believe me

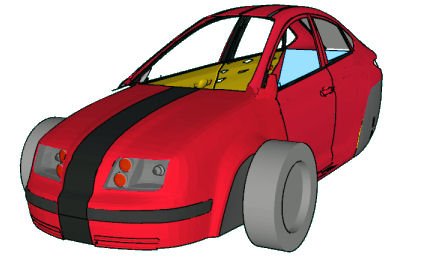

Added red one with racing stripes for the rev-heads ...

[JEBar]

I will tell you some news: The decision has been made to move to a Honda 1.5 engine, found in the FIT.

The primary motivation is availability of automatic transmission, that I have not been able to secure supply of (at reasonable cost), as well as being able to buy parts anywhere and getting serviced at any local shop.

The 2 largest selling small cars in the USA with automatic transmission are the 1.4 Chevrolet Spark, and the 1.5 Honda FIT.

I ran the question elsewhere between the 2 choices, and hands down people were unamiously satisfied that the Honda is the way to go. The Honda L15 engine is made in America BTW, and I was quite surprised at the negativity towards the GM product.

I always stated that I might not use the Toyota KR-1 engine I currently have in the prototype, and what goes against it is, it's unknown in the USA, but more impotantly, there is no automatic available for it.

Personally I think the engine is a little bit too powerful for the application (though that may bring joy to many others!), and I will look into detuning it, but that is the only real downside (if it is a downside!). Interesting that it is the 3rd smallest engine available in the USA, only the Chev Spark and Mitsubishi Mirage being smaller.

So I grabbed a donor car today, engine bay already been stripped this afternoon, and tomorrow will pull the driveline out, and start measuring for the changes to be made to the proto chassis to install it.

This decision simply comes down to economics, and KISS.

[JEBar]

Per Mark BEX .....

Got the new donor this afternoon, I am a little worried how much power it's got, the BEX will fly! But there is little choice if an auto is to be had. I may have to figure how to detune them a bit.

I am slightly concerned about the exhaust mainifold being on the rear of the cylinder head, it's ok when you have 2 people, you can have a tunnel between the 2 of you and route the exhaust through there, it changes when there's only one person sitting in the middle ... we will see what we can figure out.

So I got very close to pulling it out today, everything except for the main wiring loom and rear engine mount, and I should be able to lift it out tomorrow and start figuring the modifications required.

It might be easier just to scratch build a new chassis as I have gotten it down to a pretty quick build, which is the whole point when you are going to make a few of them continuously.

Those of you who know Honda Civics and Fits, know what a small engine bay and short nose they have, notice the Honda engine in what is basically a Corolla, and see the massive room around the engine, especially behind it!

Sorry about my finger partly over the camera lens.

https://www.youtube.com/watch?v=GQCTeHWTslM

[JEBar]

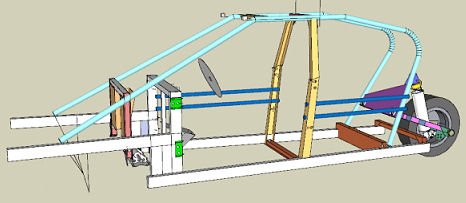

So most of the week I have been measuring and inputting into a new chassis for the Honda engine.

Most of the 3/4s of the rear is the same, although different, and the front 1/4 is completely revamped to make a simpler to produce, but stronger frame.

The biggest thing those interested might notice is the roll cage going all the way forward to meet and triangulate the front main rails.

Just about ready to start making it, and it won't take very long, and I will be using all the rear parts from the current frame.

[JEBar]

Per Mark BEX ...

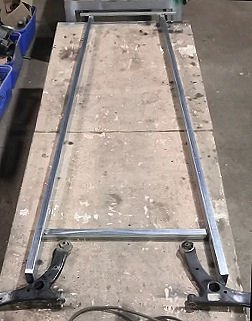

Made a start to laying new steel.
Will build a whole new frame as I want to keep the other car intact and drivable, don't worry, won't take long as I have the complete design, just making some dimensional changes as I go, some improvements I had considered, and now have the chance to implement them.
Should make them to be faster to build.

[JEBar]

when asked about the size and comfort level to be offered in the rear seat area, Mark responded :

the last thing I want is for the Boss to be a sardine.

Comfort is a must, lots of cubby holes for the Bosses' handbag and never ending knicknacks, plenty of leg room, ability to snooze on long trips, etc, but most important, I believe, is their own door, for elegant ingress and egress.

As mentioned, I am knocking together a new frame, I want to keep the other car intact and drivable, and already going smoothly.

Will be fast because it's only a modified version of the other car, mostly copying everything over, and not much in the way of any scratch designing, or finding headaches along the way .

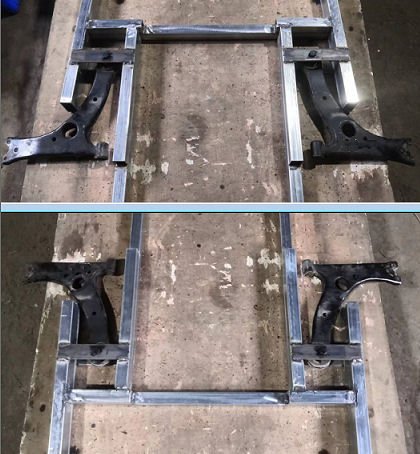

About the biggest change is I am eliminating the OEM crossmember because I don't need it for the steering rack mounts or anti-roll bar, so it's just a lot of weight and wasted money. The lower control arms will hang directly off the frame instead.

[JEBar]

Per Mark BEX ....

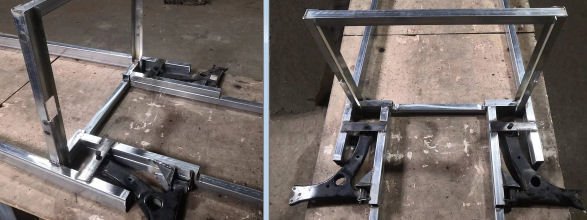

Finally the A pillars were laser cut today after a few issues with some re-arrangement of staff at the laser shop, got them folded as well, and the lower control arm front brackets also cut, so the lower control arms are now mounted.

[JEBar]

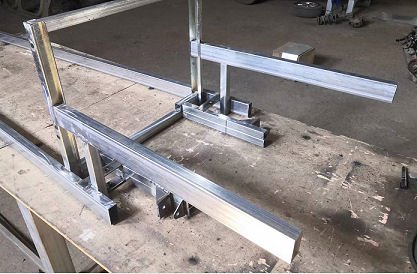

The main engine rails are in and lined up.

Going together well.

[JEBar]

Per Mark BEX ....

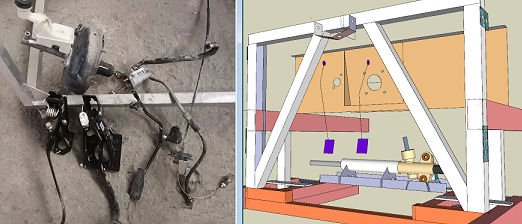

Stripped the brake and clutch pedals with their master cylinders, as well as the throttle pedal out of the donor car today.

Then of course measured them up, and put them into CAD (purple pedals) to start drawing up the new firewall (ochre) to suit the Honda driveline.

Again it's just modifying the existing components, firewall in this case, to suit the new driveline.

I don't do detailed CAD, just the main components and hard points as required, I think it's ridiculous the entent some go to, even nuts and bolts with threads, gee whiz.
